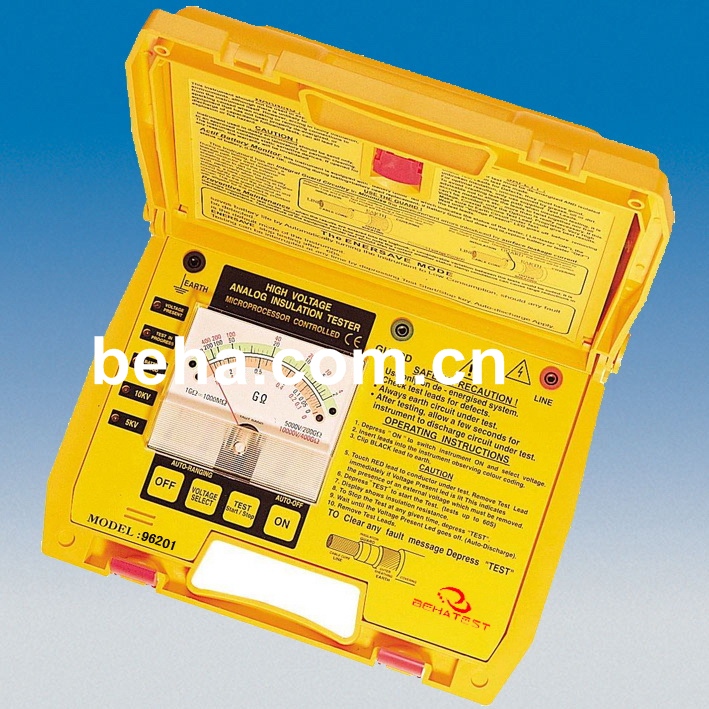

● The rugged analog panel meter is a Taut Band type.

●“Auto-Ranging” LED indicates which scale is valid. Lower scale indicates short circuit from up to 10G ohms/10KV or 5G ohms/5KV.

● Scale plate LED illuminates automatically the valid scale within the arc to use. Upper scale indicates from 4G /5KV. During auto-discharge to 200G /5KV and 8G /10KV to 400G /10KV.

● Indication of test “Voltage Presence” during test. Pre-test warning of external voltage presence if >110VAC.

●“Battery Good” LED Indication. (lit when battery is good.)

● Indication of selected voltage. (5KV or 10KV) Auto-Ranging indicates that this instrument is changing the range automatically. The selected range is indicated by a LED into the panel meter.

● A range is selected when the corresponding LED is lit. Without a lit LED, the reading is invalid. Should you forget to turn off the instrument, the meter is equipped with a “Auto-Off” feature.

●“OFF” button is used to turn off the tester at any given time. Depressing the “OFF” button, it will immediately turn power off on the control system of the instrument.

●“ON” button is used to power the tester on. The tester will sound to confirm power has been applied.

●“Voltage Select” button is used to select 5KV or 10KV test. Note that this button selection is only active when test is not in progress.

Display	Analogue, 100mm scale length
Test Voltage	5KV / 10KV
Auto-Ranges	0-200GΩ / 0-400GΩ
Accuracy	±5% of full scale
Live Warning	>500 V/AC
Operating Temperature	0°C to 40°C
Operating Humidity	85% Max. relative humidity
Power supply	8 x 1.5V, IEC LR14
Dimensions	330 x 260 x 160 mm
Weight	3.5kg (battery included)
