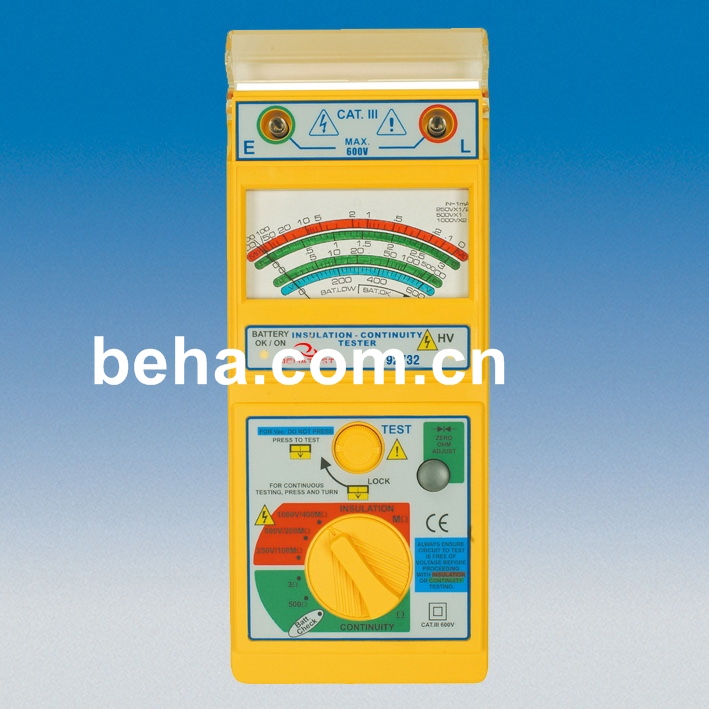

1kV Analogue Insulation Tester

Model: 92732

Features:
● High quality Taut Band movement.
● Three insulation test voltages : 250V/500V/1000V/DC
● Two continuity test on low ohms : 500Ω & 3Ω.
● Small and lightweight, all in one case (do not need bag).
● AC voltmeter with linear scale up to 600 Vac.
● 210mA continuity short circuit test current.
● 1mA test current on insulation test at nominal voltage.
● Automatic discharge of capacitance and inductive circuit with charge stored in the circuit under test.
● Live warning and display of external voltage presence.
● Fuse, air gap, crowbar and overload protected.
● On line battery monitoring shows if battery is ok.
● Very low battery consumption.
● On-load battery check (+/- 205mA load for worst case).
 Mirror scale.
● Push and turn locking switch for long and hand free testing.
● IEC 61010 / CAT III 600V.

Insulation
Test Voltage	250V / 500V / 1000V
Auto-Ranges	0-100MΩ / 0-200MΩ / 0-2000MΩ
Accuracy	±5% of full scale
Output Ranges on Open Circuit	+10%
Output Short-Circuit Current	1.3 mA
Continuity
Measuring Ranges	3Ω/ 500Ω
Output Short-Circuit Current	≥250 mA
Accuracy	±1% of scale length
AC Voltage
AC Voltage Range	0-600V/ AC
Accuracy	± 3% of scale length
General
Power supply	8 x 1.5V, IEC LR6
Safety complying with	IEC 61010/EN61010
Measurement category	CAT III / 600 V
Dimension	205 x 90 x 55 mm
Weight	Approx 550g (battery included)
