Non Contact High Voltage Detector|Earth Leakage Detection

Model: 9132KB

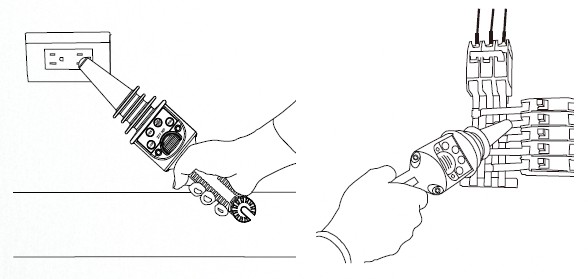

The 9132KB is an ideal tool for checking the presence of AC high voltages and AC low voltages in cables, wall outlet, fuses......etc.
The 9132KB provides a non-contact detection for AC voltages from 3V-132kV. It's also for industrial, utility and mine safety applications.
It's can also for earth lead leakage measurement

Features:
● Non-contact detection of live voltages
● Find faults in cables

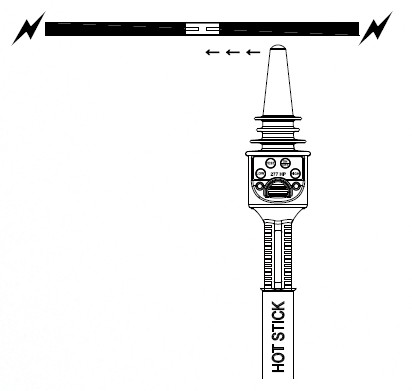

● Check and detect live high voltage cables
● Trace live wires
● Check high frequence radiation

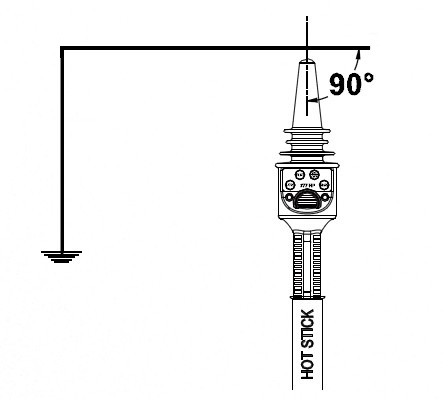

● Check grounding equipment
● Detect residual or induced voltages.


Technical Data:
2 ranges for selection (2 function buttons)
● LOW: 3.5V ~ 1.5kV, Press the LOW button, 9132KB is ready for low voltage detection.
● HIGH : 1.5kV ~ 132kV, Press the HIGH button, 9132KB is ready for high voltage detection.
Power consumption :
● Off : Less than 5uA
● Low voltage detection mode : Less than 40mA
● High voltage detection mode : Less than 40mA
Circuit test function :
● Press the Test button to make sure that whole circuit is working well before testing actual high voltage circuits.
Optional accessory :
● 9770B Telescopic hot stick (triangle-type)
● 9660B Hot stick
