92286 Wrist-type high voltage proximity alarm
Model:92286
● Personal Safety Voltage Detector
● 92286 is a sensor for sensing AC High Voltage.
● Sound and flash light warning of different frequencies varied positively with sensed voltages.
● Able to sense all kinds of AC High Voltage System.
Details
BEHATEST Wrist-type high voltage proximity alarm
Non-contact High Voltage Proximity Detector
Model: 92286
Personal Safety Voltage Detector
92286 is a sensor for sensing AC High Voltage.
It provides electric engineering personnel, power engineering personnel, firefighting personnel and instrument equipment workers with prominent warning when approaching high voltage and for taking necessary safety action, preventing illusion and misjudgment which could lead to electric shock to person.

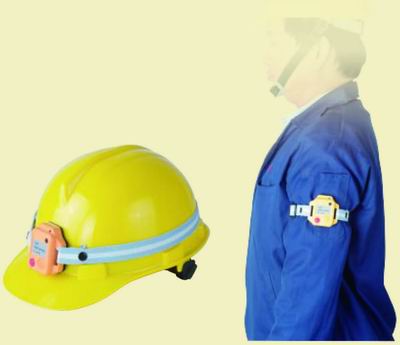

When a person wearing 92286 is approaching high voltage source or equipment, the sensor will detect automatically and buzzer will generate a "Bi-Bi" short for warning and LED will give flash light to remind operators that the user is approaching a high voltage and special attention shall be given to the safety of operations.
Features:
● Compact, easy to wear and convenient in use.
● Usable both indoor and outdoor.
● Water-proof design.
● Equipped with self-testing functions.
● Sound and flash light warning of different frequencies varied positively with sensed voltages.
● Able to sense all kinds of AC High Voltage System.
● Low power consumption.
● EN 61326-1
Technical Data:
|
Distance of starting warning
(6.6KV voltage to earth)
|
80 cm for 11.4KV
|
|
Applicable frequency
|
50 / 60 Hz
|
|
Volume
|
70dB or higher at 1 meter distance
|
|
Operating Temp & Humidity
|
5℃ - 45℃/ 80% RH.
|
|
Power supply
|
1 x 3V, CR2032
|
|
Battery life
|
50 hours for continuous use
|
|
Outside dimensions
|
59 x 56 x18 mm
|
|
Weight
|
35g (incl. battery)
|
Scope of Supply:
1 pc Wrist-type high voltage proximity alarm 92286
1 pc Elastic cord Band
1 pc Bracket
1 pc 3V Battery, type CR2032
1 pc Instruction manual
