- Current & Voltage Calibrator Meters

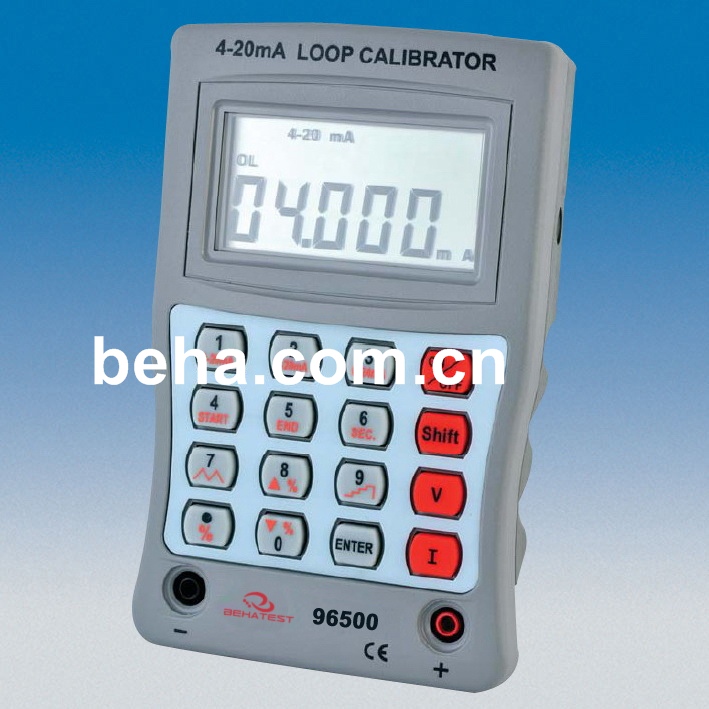

96500 Current & Voltage Calibrator Meters
Model:96500
● Current Calibrator Meter and Voltage Calibrator Meter
● 0-20mA and 0-24mA output ranges.
● 0-24V DC voltage source.
Details
Current & Voltage Calibrator Meters
Model: 96500
Features:
● 4-20mA (1KΩ Load, 24V Loop Output).
● 0-20mA and 0-24mA output ranges.
● 0.025% low deviation.
● Auto Ramp and Step functions.
● 0-100% output with percentage step option.
● 0-24V DC voltage source.
● Open loop and overload buzzer alarm.
● Low battery indication.
Technical Data:
|
DC Current (1k Max. Load, 24V Loop Supply)
Beeper warming when output is open and specified output > 1mA.
|
||
|
Range
|
Resolution
|
Accuracy
|
|
0-4mA
|
1μA
|
±0.025%±10μA
|
|
4-20mA
|
1μA
|
±0.025%±5μA
|
|
20-24mA
|
1μA
|
±0.025%±5μA
|
|
DC Voltage
Beeper warming when output is short & specified output > 100mV.
|
||
|
Range
|
Resolution
|
Accuracy
|
|
0-4V
|
1mV
|
±0.05%±10mV
|
|
4-20V
|
1mV
|
±0.05%±5mV
|
|
20-24V
|
1mV
|
±0.05%±5mV
|
|
|
||
|
Power Consumption
|
25mA at 100 load
|
|
|
Operating Temperature
|
0°C~50°C
|
|
|
Operating Humidity
|
≤80% R.H.
|
|
|
Storage Temperature
|
-10°C~60°C
|
|
|
Storage Humidity
|
≤85% R.H
|
|
|
Power Supply
|
1 x 9 V, IEC 6LR 61
|
|
|
Dimension
|
160 x 100 x 38 mm
|
|
|
Weight
|
Approx. 325g(battery included)
|
|
Scope of Supply:
1 pc Current & Voltage Calibrator 96500
1 pc Battery 9V, IEC 6LR61
2 pc Test Leads
1 pc Carrying Case
1 pc Instruction Manual
