- Milliohm Meters & Microhm Meters

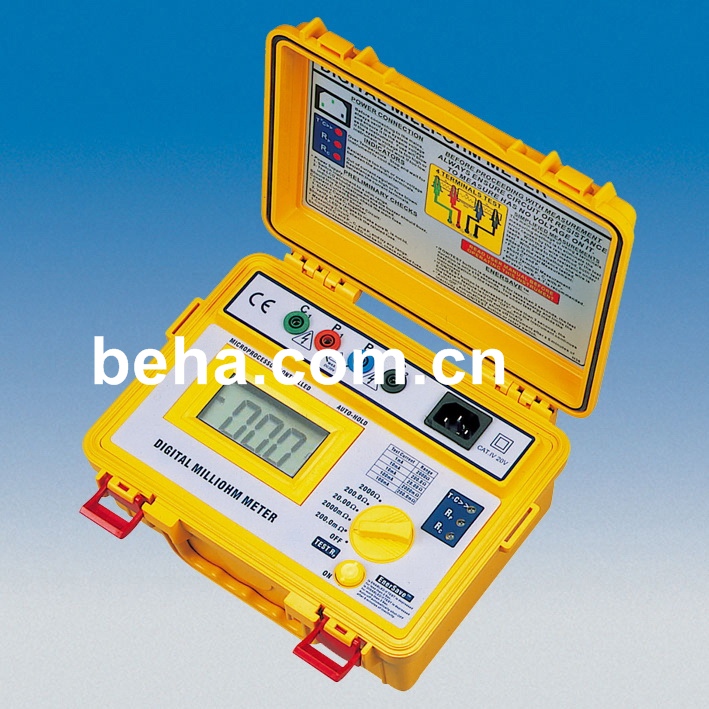

94136 Milliohm Meter
Model:94136
● Power Source : 110V AC or 230V AC
● Four terminal measurement.
● Measures down to 100μΩ.
● 5 Ranges from 200.0mΩ to 2000Ω.
● Maximum resolution of 100μΩ
● Measures down to 100μΩ.
● 5 Ranges from 200.0mΩ to 2000Ω.
● Maximum resolution of 100μΩ
Details
Milliohm Meter|Ohmmeters|Resistance Measuring
Model: 94136
The meter digital milli-ohmmeter is a powered by 220V AC or 110V AC instrument wich supply a low current to the circuit under test, with which, stable, accurate measurement of low resistance can be made, still, over a wide range of values.
Power Source : 110V AC or 230V AC
Maximum resolution: 100μΩ
Test Current: 100mA/10mA/1mA
Features:
● Four terminal measurement.
● Measures down to 100μΩ.
● 5 Ranges from 200.0mΩ to 2000Ω.
● Maximum resolution of 100μΩ
● Three test currents with over-temperature protection.
● Protection against inadvertent connection to overvoltage.
● Large LCD.
● Potential lead resistance, current lead resistance checks.
● "Full-Featured" EnerSaveTM inside.
● EnerSaveTM AUTO-HOLD.
● EnerSaveTM AUTO-OFF.
● Lightweight, robust & compact.
● Indicators show if reading may be invalid (RP, RC, and temperature).
● "O-Ring" sealed case.
● Future optional rechargeable battery.
● EN 61010-1 / EN 61326-1 / CAT III 20V
Technical Data:
|
Display
|
3 1/2 digit (1999 counts)
|
|
Measuring Ranges
|
0-200.0 mΩ in steps of 100 μΩ
0-2000 mΩ in steps of 1 mΩ
0-20.00 Ω in steps of 10 mΩ
0-200.0 Ω in steps of 100 mΩ
0-2000 Ω in steps of 1Ω
|
|
Accuracy
|
± (0.5%rdg+2digits)
|
|
Test Current
|
1mA / 2000 Ω range
10mA / 200/20 Ω ranges
100mA / 2000/200 mΩ ranges
|
|
Test Current Accuracy
|
± 0.1%
|
|
Power supply
|
110VAC or 230VAC
|
|
Protection Fuses
|
Mains / 0.5A, HBC, 5 x 20mm, DIN
Current / 0.5A, HBC, 5 x 20mm, DIN
Voltage / 0.5A, HBC, 5 x 20mm, DIN
|
|
Dimensions
|
205 x 190 x 110 mm
|
|
Weight
|
Appox. 1530g
|
Scope of Supply:
1 pc Milliohm Meter 94136
1 set test lead with 4 Crocodile clamps
1 pc Shoulder belt
1 pc Power cord
1 pc Instruction Manual
Option Order:
