- Cable Tracer

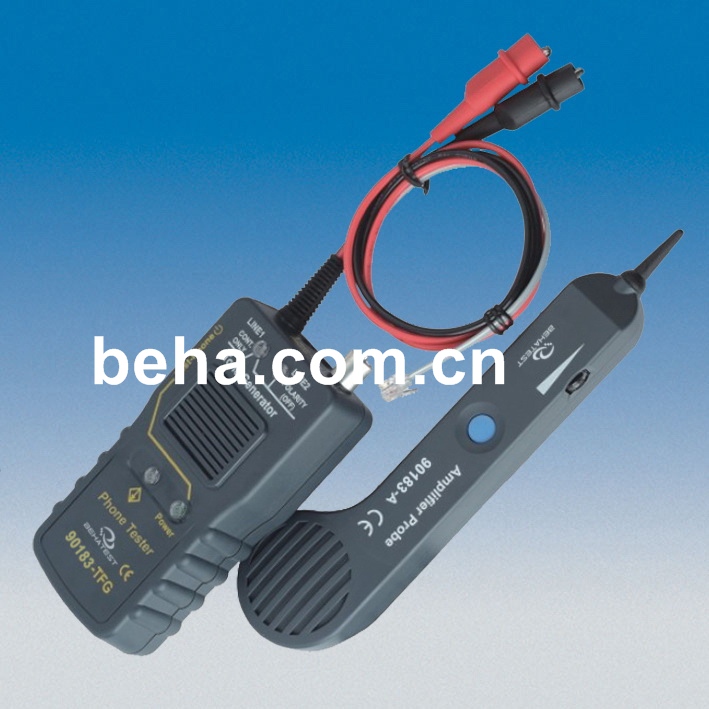

90183 Cable tracer and Phone tester
Model:90183
● The Amplifier Probe is designed to identify and trace wires or cables within a group without damaging the insulation.
● Phone Tester / Generator is a great tool fo locating and identifying cable pairs or individual conductors.
● 90183-TFG does not only provide the function of a tone generator, but also serves as a continuity and polarity tester.
Details
Cable tracer and Phone tester
Model: 90183
Features:
Amplifier Probe (90183-A)
● The Amplifier Probe is designed to identify and trace wires or cables within a group without damaging the insulation.
● Works with any Tone Genertor to identify wires.
● Volume control for increased sensitivity and adjustable to suit various work environments.
● Recessed ON/OFF button prevents battery drain.
● Power supply is in any 9V battery with a life of approximately 100 hours.
● A phone jack is designed for headset or handset.
Phone Tester / Generator (90183-TFG)
● Phone Tester / Generator is a great tool fo locating and identifying cable pairs or individual conductors.
● 90183-TFG does not only provide the function of a tone generator, but also serves as a continuity and polarity tester.
● A tone selector switch located inside the unit for selection of the fast tone or slow tone.
● Two bi-colored LEDs for Line 1 and Line 2 indication of the polarities of the telephone lines.
● The unit has alligator-type terminals and a modular cable of 4 conductors with a strong Connector.
● The tone and continuity functions are only applied to Line 1. (modular connector)
The functions of Phone Tester:
● Continuity and resistance testing of voltage free objects.
● Check direct and alternating voltages.
● Testing capacitors.
● Testing diodes.
● Testing transistors.
● Power ON/OFF switch for Test-Phone functions.
● The indication of the LED lamp and buzzer sound occur at the same time.
● The LED indication of Power ON status.
Technical Data:
|
Amplifier Probe (90183-A)
|
Frequency Detection : 1Hz ~ 12kHz
|
|
|
Receiver Distance Sensitivity Control : < 50 cm
|
|
Tone Generator (90183-TFG)
|
Waveform : Square Wave
|
|
|
Frequency : 1k Hz +/- 15%
|
|
|
Over Voltage Protection : 80V DC
|
|
|
Alternating Tone : Fast and slow
|
|
|
Connection : RJ11 connector
|
|
Phone Tester (190183-TFG)
|
U test : < 4.75V
|
|
|
I test : < 2mA
|
|
|
Resistance : 0 ~ 2 MΩ
|
|
General
|
|
|
Operating Temperature & Humidity
|
0℃ ~ 40℃, 80% Max.
|
|
Storage Temperature & Humidity
|
-℃ ~ 50℃, 80% Max.
|
|
Power supply
|
Amplifier Probe : 1 x 9V battery.
Phone Tester / Generator : 6 x 1.5 V, IEC LR6
|
|
Dimensions
|
Amplifier Probe : 270 x 50 x 25 mm
Phone Tester / Generator : 143 x 74.5 x 33.6 mm
|
|
Weight
|
Amplifier Probe : 125g (battery included)
Phone Tester / Generator : 250g (battery included)
|
|
Safety Standard
|
EN 6136-1, EN 55011, EN 61000-4-2, EN 61000-4-3
|
Scope of Supply:
1 pc Amplifier Probe (90183-A)
1 pc Phone Tester / Generator (90183-TFG)
1 pc carry case
1 pc Battery 9 V, IEC 6LR61
6 pc Batteries 1.5 V, IEC LR6
1 pc Instruction Manual
